Product Details:
|
| NETD: | 50mK | CCD: | 1/1.8'' CMOS 0.0002lux Star Ultra Low-light Color |
|---|---|---|---|
| Thermal Lens: | Electric Zoom And Focus | Image Processing: | 10 Pseudo Color And B/W, B/W Inverse |

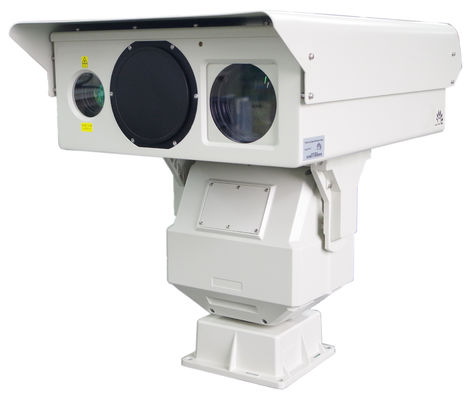

| Detector: | Vox | Feature: | Multi-sensor Thermal And Laser Camera |
| Highlight: | thermal surveillance camera,security camera system |
||
Product Description:
Feature:
Applications:
Border defense, railway&expressway security, seaport&airport security, city security, forest fire prevention, river&lake monitoring.
Technical Parameters:
| Type | TRC4105A-2022-IP | TRC4307A-2050-IP | TRC4511A-2075K-IP | |
| Detection | Vehicle: 4200m | Vehicle: 6500m | Vehicle: 8600m | |
| Human: 1640m | Human: 2500m | Human: 3400m | ||
| 5th generation uncooled FPA sensor Resolution 336 × 256 pixel | ||||
| Spectral range 7.5 ～ 14 μ m, NETD 50mk | ||||
| Thermal camera | 50mm | 25mm ～ 75mm | 21mm ～ 105mm | |
| 1. Electric zoom and focus | ||||
| 2. Special AS & DOE optical zooming lens | ||||
| 3. 3CAM high-precision optomechanical design | ||||
| Field of view | 6.5 °× 4.8 ° | 13 °～ 4.3 ° | 18 °～ 3.4 ° | |
| IFOV | 0.34mrad | 0.22 ～ 0.68mrad | 0.17 ～ 0.85mrad | |
| Image processing | SDE digital image processing | |||
| 10 pseudo color and B/W, B/W inverse | ||||
| AGC & 2X digital amplification | ||||
| Consumption | 6W, 808nm, NIR | 10W, 808nm, NIR | 15W, 808nm, NIR | |
| Laser angle | 1.5 °～ 20 ° | 0.7 °～ 20 ° | 0.5 °～ 20 ° | |
| Cooling Package | 1.filled with inert gas seal to prevent oxidation | |||
| 2.Laser with distributed design with more cooling capacity | ||||
| Angle and distance matching | 1. Automatic tracking or manual fine-tuning intelligent matching | |||
| 2. DSS digital stepper illumination angle control, unique laser angle and distance matching technology, min 0.1°follow-up zooming | ||||
| 3. Z-super laser angle and magnification matching algorithm, the tracking response time <30ms | ||||
| 4. 0.01°SLM optical axis aiming and locking | ||||
| CCD | 1/2.8'' CMOS 0.005lux low illumination color to B/W | 1/1.8'' CMOS 0.0002lux Star Ultra low-light color | ||
| 1. 2 megapixel HD, 1920*1080,Automatic ICR switch | ||||
| 2. H.264/MPEG4/MIPEG H.264 video format | ||||
| 3. Video bit rate 32Kbps ~ 16Mbps, 60Hz30 frames / sec | ||||
| 4. Support SD card local storage | ||||
| 5. ABF Auto Back Focus adjustment function | ||||
| Visible Lens | 1. 10mm～220mm | 1.15～528mm | 1. 20～750mm | |
| 2. F2.2 ～ 360 | 2. F4.5 ～ 360 | 2. F4.6 ～ 360 | ||
| 3. FOV (H)43 °～ 2.8 ° | 3.FOV ( H ) 15 °～ 0.7 ° | 3. FOV (H)11 °～ 0.5 ° | ||
| 4. Close-up 1.5m | 4. Close-up 3 meter | 4. Close-up 2.5 meter | ||
| 5. HD infrared correction | 5. 105mm Large Aperture | 5. 105mm Large Aperture | ||
| Motorized & manual focus, DC8-12V, auto iris, (optional auto focus), DC5V precision potentiometers preset positions, zoom focus feedback | ||||
| Fog penetration | Optical filtering and AFR image processing technology | |||
| Housing | 1. Material: aluminum alloy, stainless steel fasteners, anti strong winds. | |||
| 2. Structure: integrated design, | ||||
| 3. The surface coating: PTA three anti-paint, anti-seawater corrosion | ||||
| 4. Protection grade: IP66, waterproof and dustproof | ||||
| 5.Interface: Aviation waterproof plug | ||||
| PT | 1, Load duty : 30kg | 1, Load duty : 50kg | ||
| 2, Angle: | 2, Angle : Pan 360 ° 360°continuously | |||
| Pan 360°continuously | Tilt: +40 °～ -45 ° | |||
| Tilt: +40 °～ -45 ° | 3, Speed: pan 0.01 ～ 30 ° /S, Tilt 0.01 ～ 15 ° /S | |||
| 3, Speed: pan 0.01 ～ 30 ° /S, Tilt 0.01 ～ 15 ° /S | 4, Preset : 80 , Patrol & Scan | |||
| 4, Preset : 80 , Patrol & Scan | 5, Orientation and angle real-time display, with zero correction | |||
| 5, Orientation and angle real-time display, with zero correction | ||||
| Interface | 1. Intelligent IP box, one 10M / 100M adaptive Ethernet port (containing visible thermal image + HD + RS485 control), AC24V / DC24V, | |||
| 2. (Optional) Reserved RS422 / 485 and analog video, azimuth return for radar, GIS linkage position, or third-party intelligent analysis | ||||
| 3,Military-grade waterproof aviation plug | ||||
| Protocol | 1. TCP / IP, HTTP, DHCP, DNS, DDNS, RTP and other network protocols | |||
| 2. Support ONVIF2.0 | ||||
| 3, Pelco-P, Pelco-D and other industry-standard protocol, (optional) Baud rate 2400, 4800, 9600, 19200 | ||||
| Power | AC24V / DC24V ± 10%, 50Hz, 150W, standard AC220V-> AC24V adapter | |||
| (Optional DC12V power supply, RC2013 only use AC24V, not DC power supply) | ||||
| Environmental Indicators | 1. Working temperature: -25 ℃ ~ + 55 ℃ | |||
| 2. Storage temperature: -35 ℃ ~ + 65 ℃ | ||||
| 3. Humidity: <90% | ||||
| 4. Ingress Protection: IP66 | ||||
| Weight | ≤ 30kg | ≤ 40kg | ≤ 50kg | |
* The detection distance is related to the object and environment etc. Please contact with us for further information.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
