Product Details:
|
Lens: | 25mm | Load Duty: | 50kg |
---|---|---|---|
Ir Laser: | 808nm | Onvif: | Support |
Ptz: | Load Duty:30kg | Preset: | 80 (245 For Option) |
Dimensions: | 200mm X 100mm X 100mm | Video Format: | H.264/MPEG4/MIPEG |
Highlight: | H.264 Infrared Camera Long Distance Range,25mm Lens Long Range Infrared Camera,MIPEG Long Range Infrared Camera |

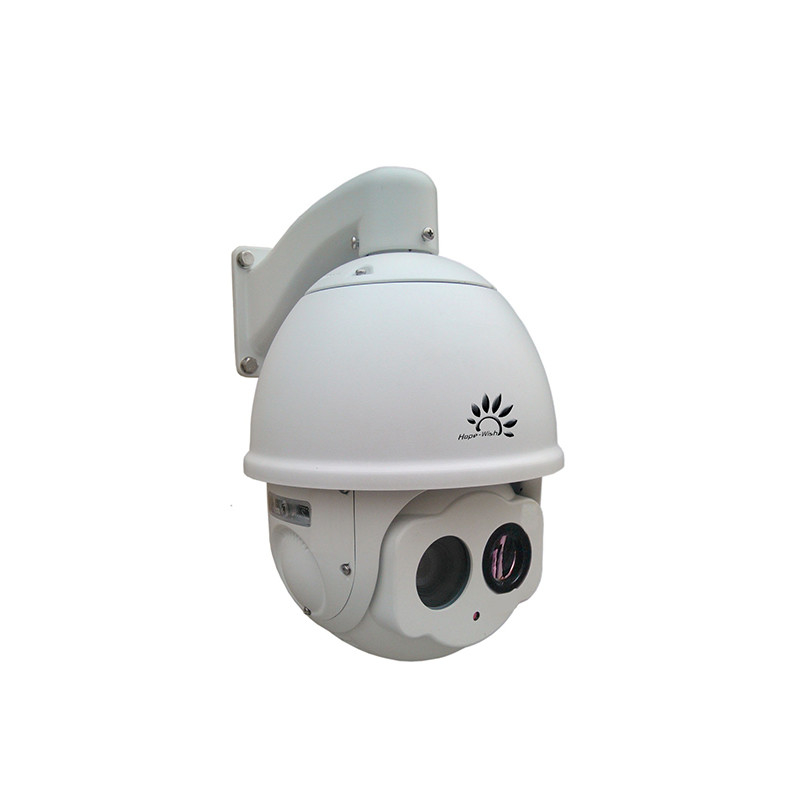

DRC19 series high speed laser night vision dome camera, 2.1 megapixel, can monitor a region of 300m~400M clearly at night. Consist of NIR laser illumination, PT, precise gearing, HD lens, digital encoder, CCD and MCU. The mechanical design of PTZ is simple and stable. It could rotate to the proposed position quickly and accurately.
The camera has 128 presets, recording and patrol function and could preset anywhere. It also have automatic exposure, automatic focus function.
Model | HP-DRC1930 |
Detection | Day:800m; |
Night: 400m | |
CCD | 1/2.8'' CMOS, HD 2.1 MP, 1920X1080, Auto ICR switch, color to B/W mode |
Video encoding | Video compression H.264, code stream 32k~8Mbps, Support dual-stream,the heart, smart restructuring,electronic shutter, white balance, 3D DNR, DWDR,automatic exposure, support SD card, motion detection, mask alarm |
Focal length |
4.3~129mm,30 optical zoom F1.6~F5.0 |
FOV | 65°~2.3° |
Min. illumination | 0.05lux /0.005lux |
Consumption | 5W, 808nm,NIR |
Laser lens | 30mm F1.0 Fast lens, GHT laser homogenizing technology |
Laser angle | 2°~50° |
Angle control | DSS laser angle control technical, 30ms fast track response,min 0.1°sync zoom accompany camera, support manual zoom and sync zoom. |
Optical axis aiming | 0.01°SLM optical axis aiming and locking |
Laser on/off | Auto/manual |
PTZ | Pan: 360°continuously, Tilt: -90°~+5°(Support auto reverse) |
Rotation speed | Pan: 0.01°~200°/s, Tilt: 0.01°~120°/s, max speed of calling preset 250°/s, rotation speed vary automatically according to the focal length |
Preset | 255, support memory record after power breakdown, scan, keep watch |
Interface and protocol | RJ45, 10M/100M Ethernet, TCP/IP, RTP/RTCP, HTTP etc protocol |
Compatibility | Support ONVIF,GB/T28181 |
Customized function | Customizable privacy shade, 3D box chosen magnification |
Online update | Support online update |
Baud rate | 2400/4800/9600/19200bps |
Weatherproof | IP66, TVS4000V anti-lighting, anti-wave |
Operational temp. | -30℃~60℃, <90%RH non-condensing |
Power supply | DC12V/4A, common≤40W,peak≤60W |
Dimension | Φ230(mm)*348(mm) |
Weight | 5kg |
With its advanced Infrared Camera Lighting, our camera can capture clear and crisp images in complete darkness, making it perfect for surveillance and security purposes.
In addition to its Infrared capabilities, our camera also features an EO IR Camera, allowing for both thermal and visible light imaging for improved accuracy and detection.
At Hope-Wish, we offer a range of customization options for our Long Range Infrared Camera to meet your specific needs and requirements. From different lens options to various connectivity options, we can tailor our camera to fit your unique project needs. Contact us today to learn more about our customization services.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
