Product Details:
|
Tilt Range: | 90 Degrees | Min Illumination: | 0.05lux /0.005lux |
---|---|---|---|
Laser Angle: | 2°~50° | Optical Zoom: | 30X |
Ip Rating: | IP66 | Baud Rate: | 2400/4800/9600/19200bps |
Type: | PTZ Camera | Operating Temperature: | -20°C To 60°C |
Highlight: | 0.05lux Thermal Imaging Camera,Infrared Thermal Imaging Camera,PTZ Cooled Sensor Thermal Imaging Camera |
Whether you're looking to secure your home, office, or any other property, our IR Security Cameras are the perfect solution. With their powerful features and reliable performance, you can rest assured that your property is under constant surveillance.
This PTZ Infrared Camera is an EO IR Camera that is perfect for outdoor use. It features an HD PTZ Outdoor Camera design that allows for clear and detailed footage. The camera uses a 808nm NIR laser and consumes 5W of power. It supports ONVIF and GB/T28181 compatibility and can operate in temperatures ranging from -20°C to 60°C. With a 30X optical zoom, this camera is perfect for capturing detailed footage from a distance.
Model | HP-CTC61532 |
Detection | Vehicle: 18000m / Human: 11000m |
Identification | Vehicle: 7000m / Human: 3500m |
Thermal Camera | |
Sensor |

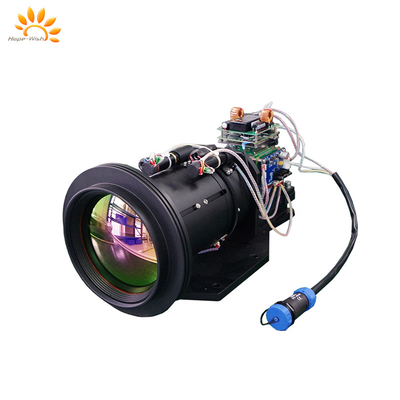

Cooled Focal Plane Array (FPA) MCT HgCdTe detector Stirling cryocooler |
Resolution | 640 × 512 pixel |
Spectral range | 3.7 ~ 4.8μm, MWIR |
NETD | 20mK (@25℃ F4.0) |
Focal length | 15 - 300 mm |
Field of view(horizontal) | 35°×28°~1.8°×1.4° |
PTZ | |
Duty | 30kg CNC PT |
Rotation | Pan: 0~360°, Tilt: -45°~+45° |
Rotation speed | Pan: 0.01°~30°/S, tilt: 0.01°/S ~15°/S |
Accuracy | ±0.1° |
Preset | 255 presets, support lens zooming and focusing preset |
Mode | Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising |
Network | |
Network interface | RJ45.10, 10/100 Base-T adaptive (integrated video output RS422/485) |
Network Protocol | TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2.0, GB28181 and other network protocol. |
Environment Parameter | |
Operating temperature | -25℃~+60℃(-40℃ Optional) |
Storage temperature | -45℃~70℃ |
Protection Level | IP66 |
General | |
Total Consumption | 180W |
Power supply | AC/DC24V, anti-reverse connection protection |
Weight | ≤25kg (include PTZ) |
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
The PTZ Infrared Camera provides high-quality video surveillance for both indoor and outdoor environments. Our technical support team is available to assist with any installation or operation questions you may have. Additionally, we offer a range of services including maintenance and repair, firmware updates, and remote monitoring. Our goal is to ensure that your camera is functioning optimally and providing reliable security for your property.
1. Q: What is the resolution of the Hope-Wish PTZ Infrared Camera HP-TC?
A: The HP-TC has a resolution of 1080p Full HD.
2. Q: Is the HP-TC suitable for outdoor use?
A: Yes, the HP-TC is weatherproof and suitable for outdoor use.
3. Q: What is the night vision range of the HP-TC?
A: The HP-TC has a night vision range of up to 100 feet.
4. Q: Can I control the camera's movements remotely?
A: Yes, the HP-TC is a PTZ (Pan-Tilt-Zoom) camera that can be controlled remotely using a mobile app or web browser.
5. Q: Where is the Hope-Wish PTZ Infrared Camera HP-TC manufactured?
A: The HP-TC is manufactured in China.
