Product Details:
|
| Application: | Vehicle Mounted | Laser Switch: | Auto/manual |
|---|---|---|---|
| Resolution: | 1080P | Operating Temperature: | -30°C ~ 60°C |
| Compatibility: | Support ONVIF,GB/T28181 | Pan Range: | 360 Degrees |
| Pan Speed: | 120°/s | Consumption: | 5W, 808nm,NIR |
| Highlight: | 1080P Pan Tilt Zoom Laser Camera,1080P Resolution pan tilt camera,Marine Vehicle Mounted pan tilt camera |
||

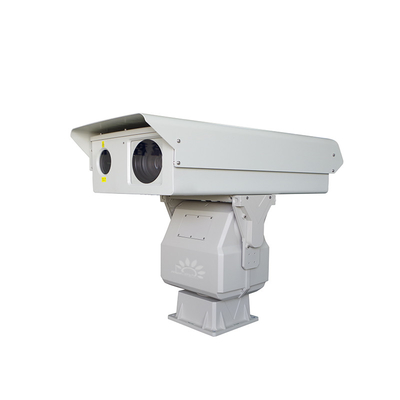

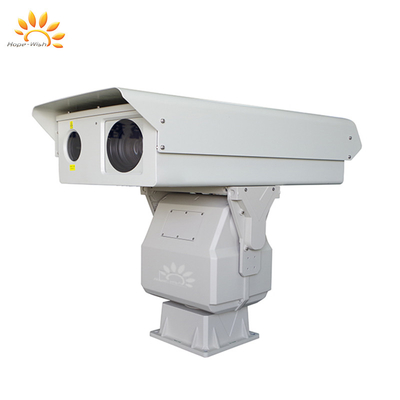

HP-RC20100series long-range HD infrared laser imaging camera is designed for 24 hours monitoring. With super homogenizing NIR laser and low illumination megapixel telephoto lens. The max detection distance for human/car/object is 10 km in the day and 3 km~4km in the night
Built-in technical grade embedded control electronic system, the camera operation like zooming, focusing, video switch, rotation is stable and accurate. One integral aluminum alloy housing and weatherproof IP66 make sure it works well outdoor.
The PTZ Laser Camera is a reliable and efficient camera that is perfect for surveillance and monitoring in low light conditions. Its laser illumination, fast lens, and energy-efficient consumption make it a top-of-the-line option for businesses, organizations, and homeowners looking for high-quality surveillance. With a one-year warranty, customers can rest assured that they are investing in a reliable and long-lasting product. Not to mention, the PTZ Laser Camera is easy to install and use, making it a great option for anyone looking for a high-quality, user-friendly camera.
| Model | HP-RC20100 |
| Detection | Day: 10km; |
| Night:3 km | |
| Consumption | 20W, 810nm, NIR |
| Laser angle | 0.3°～20° |
| Angle and distance matching | DSS digital stepper illumination angle control, unique laser angle and distance matching technology, min 0.1°follow-up zooming |
| GHT-II super homogenizing HD illumination technology | |
| 0.01°SLM optical axis aiming and locking | |
| Camera | 1/1.8'', 0.0002lux high sensitive color to B/W CCD ,2 megapixel |
| Automatic ICR switch,H.264 video format | |
| Lens | 16.7-1000mm HD lens, infrared correction, 2 mega pixels, motorized zoom |
| Penetrate fog | Optional, optical filtering and AFR optoelectronic enhanced image processing technology, color penetrate fog |
| Housing | One integral aluminum alloy housing,sealed and waterproof,IP66 |
| Load duty | 50kg |
| PT | Pan: 360°continuously |
| Tilt: +45°～-45° | |
| Rotation speed | Pan: 0.01～30°/S |
| Tilt: 0.01～15°/S | |
| Preset | 80, with patrol and scan function |
| Interface | 1*RJ45,1*AC24V |
| Power supply | AC24V±10%,50Hz,150W,standard configuration AC220V->AC24V adapter |
| Weatherproof | IP66 |
| Anti-lighting | Power voltage 4000V,communication signal 2000V |
| Protocol | Pelco-P,Pelco-D and so on standard protocol, baud rate 2400,4800,9600,19200 |
| Operational temp. | -25℃～+55℃ (-40℃ optional) |
| Weight | ≤40kg |
Oilfield monitoring, navigation, fishery, aquaculture, railway&freeway security, seaport&airport security, mariculture security, city security and forest fire prevention.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
