Product Details:
|
Angle Control: | DSS Digital Illumination Control | Laser Switch: | Auto/manual |
---|---|---|---|
Interface: | RJ45 | Operating Temperature: | -30°C ~ 60°C |
Resolution: | 1080P | Compatibility: | Support ONVIF,GB/T28181 |
Laser Lens: | 30mm F1.0 Fast Lens,GHT-II Homogenizing | Laser: | 808nm NIR |
Highlight: | 808nm PTZ Laser Security Camera,30mm PTZ Laser Security Camera |

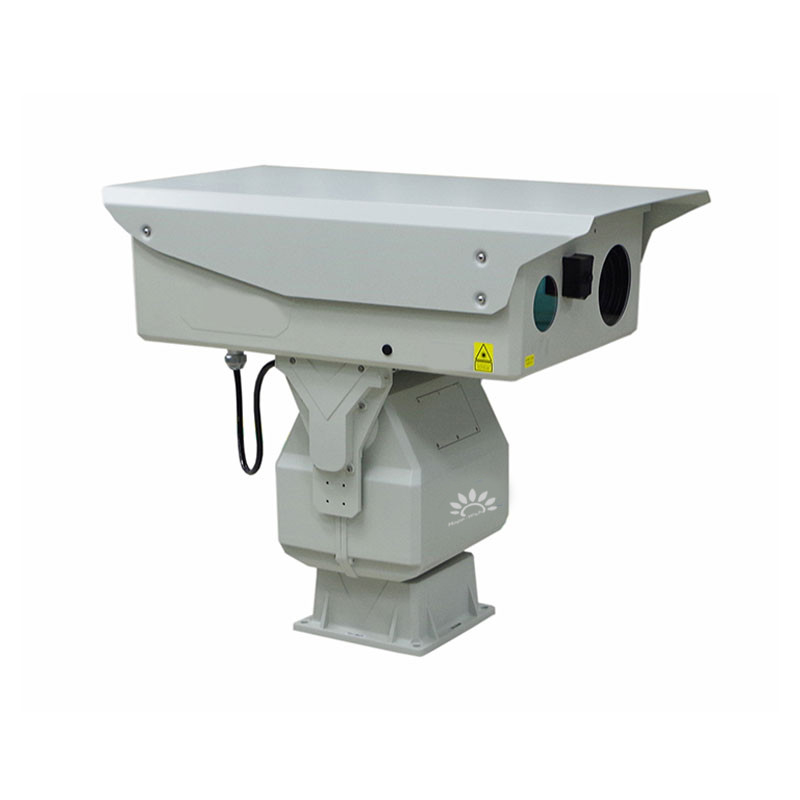

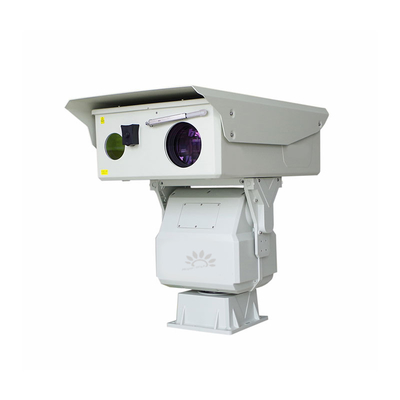

HP-RC2186 series long-range HD infrared laser imaging camera is designed for 24 hours monitoring. With super homogenizing NIR laser and low illumination megapixel telephoto lens. The max detection distance for human/car/object is 10 km in the day and 3 km~4km in the night
Built-in technical grade embedded control electronic system, the camera operation like zooming, focusing, video switch, rotation is stable and accurate. One integral aluminum alloy housing and weatherproof IP66 make sure it works well outdoor.
Overall, the PTZ Laser Security Camera is a powerful and versatile tool that can help you monitor your environment with precision and ease. Whether you're looking to keep an eye on a large commercial property, a manufacturing facility, or a public space, this camera is the perfect choice for the job. With its advanced features and durable construction, you can trust this camera to deliver reliable performance day in and day out.
Model | HP-RC2186 |
Detection | Day: 8 km; |
Night:3 km | |
Consumption | 15W, 810nm, NIR |
Laser angle | 0.5°~20° |
Angle and distance matching | DSS digital stepper illumination angle control, unique laser angle and distance matching technology, min 0.1°follow-up zooming |
GHT-II super homogenizing HD illumination technology | |
0.01°SLM optical axis aiming and locking | |
Camera | 1/1.8'', 0.0002lux high sensitive color to B/W CCD ,2 megapixel |
Automatic ICR switch,H.264 video format | |
Lens | 11-800mm HD lens, infrared correction, 2 mega pixels, motorized zoom |
Penetrate fog | Optional, optical filtering and AFR optoelectronic enhanced image processing technology, color penetrate fog |
Housing | One integral aluminum alloy housing,sealed and waterproof,IP66 |
Load duty | 50kg |
PT | Pan: 360°continuously |
Tilt: +45°~-45° | |
Rotation speed | Pan: 0.01~30°/S |
Tilt: 0.01~15°/S | |
Preset | 80, with patrol and scan function |
Interface | 1*RJ45,1*AC24V |
Power supply | AC24V±10%,50Hz,150W,standard configuration AC220V->AC24V adapter |
Weatherproof | IP66 |
Anti-lighting | Power voltage 4000V,communication signal 2000V |
Protocol | Pelco-P,Pelco-D and so on standard protocol, baud rate 2400,4800,9600,19200 |
Operational temp. | -25℃~+55℃ (-40℃ optional) |
Weight | ≤40kg |
One of the key features of the HP-RC is its 30mm F1.0 fast lens, which provides clear and detailed images even in low light conditions. The GHT-II homogenizing technology ensures even illumination across the entire field of view, making it an ideal choice for outdoor or large-scale monitoring applications.
The HP-RC is designed to operate in a wide range of temperatures, from -30°C to 60°C, making it suitable for use in even the harshest environments. It is specifically designed for vehicle-mounted applications, making it an ideal choice for law enforcement or military surveillance operations.
The camera's pan range is a full 360 degrees, giving operators complete control over the field of view. The laser switch can be set to either auto or manual mode, allowing for quick adjustments to lighting conditions or other environmental factors.
Overall, the Hope-Wish HP-RC PTZ Camera with Laser Illumination is an ideal choice for any application where high-quality, reliable surveillance is needed. Whether you're monitoring a large outdoor area, tracking the movements of a vehicle, or conducting military or law enforcement operations, this laser PTZ surveillance camera is the perfect tool for the job.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
