Product Details:
|
| Effective Visual Distance: | 700-1600m | Wave Length: | 915nm |
|---|---|---|---|
| Display: | 3.5 Inch LCD | Night Vision: | 1km |
| Storage Format: | MP4 | Battery: | Lithium , AC220V Adapter, |
| Technology: | Night Vision Infrared | Laser: | 915nm NIR |
| Highlight: | Handheld Thermal Camera,2km Thermal Camera,Lightweight Thermal Camera |
||
Key Benefits:
l Imaging with thermal, open a new angle of view;
l Area scanning, fast and exactly discover all the temperature information on this area;
l 120X120/80X80 pixel thermal imaging camera equal to 14400/6400 infrared thermometer working together;
l Non-touch temperature measurement makes the operator much safer;
l Inspect the electrical powered target safety;
l Imaging data analysis with computer;
l Saving time, increase efficiency.
| Items | HP-MTCK2 | |
|
Detector |
Type | Uncooled FPA |
| Resolution | 160x120 | |
| Spectral range | 8-14um | |
| Frame rate | 60 Hz | |
| NETD | 0.06℃@30℃ | |
|
Lens |
FOV | 28°x37° |
| Focal range | 0.2m~∞ | |
| Focal method | Focus-free | |
| Image | Spatial resolution | 4.4mrad |
| Visual camera | Yes | |
|
Display |
LCD | 3.2" TFT LCD, 240x320 |
| Color palette | 4 Color palettes for option(iron, rainbow, black hot, white hot) | |
| Display mode | Thermal/visual quick switching, DSIE Technology | |
| Adjustment | Auto | |
|
Measurement |
Range | -30℃~ +650℃ |
| Accuracy | ±2℃ or ±2% (of reading, whichever is greater) | |
| Adjustment | Auto | |
| Measure mode | Settled central spot, Full screen Max/Min temp., Overheated alarm (voice, light) | |
| Emissivity adjustment | Variable from 0.01 to 1.0(increment: 0.01) | |
| Settings | Data/time/format, ℃/℉/K, language | |
|
Storage |
Memory card | Internal memory, up to Max. 5000pcs images |
| Storage method | Manual, single frame thermal, fusion image | |
| Photo format | JPEG, with original digital data | |
| Voice annotation | 60 seconds (saved with image) | |
|
Power supply |
Battery | Special-packing rechargeable Li-on battery, replaceable |
| Operation time | >3 hours continuous operation | |
| Charging | USB port | |
| Energy-saving mode | Auto sleep, auto shut down | |
| Interface | Power input | USB Type-C |
| Data transport | USB Type-C | |
|
Environment |
Working temp. | -15℃~+50℃ |
| Storage temp. | -25℃~+60℃ | |
| Humidity | ≤90% Non-condensing | |
| Protection grade | IP54 | |
| Shock resistance | 30G, IEC60068-2-27 | |
| Vibration resistance | 2G, IEC60068-2-6 | |
| Drop resistance | 1.5m | |
| Safety | EMC | Comply with CE |
|
Dimension & Weight |
Dimension | 240*88*135mm (H*W*D) |
| Weight | 510g(w/ battery) | |

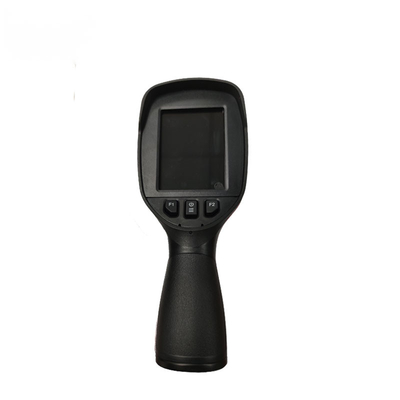

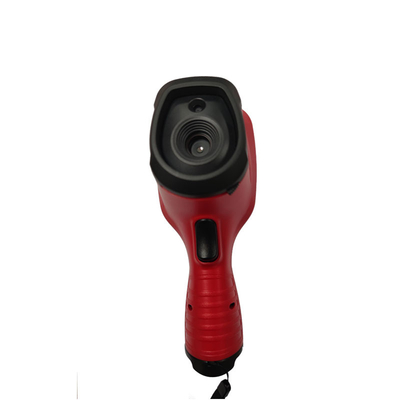

Whether you are a professional hunter or a border defense officer, the HP-MTC Portable Infrared Camera is the perfect solution for all your field needs. With its compact and portable design, you can carry this device with you wherever you go, making it easy to capture images and videos on the go. The device comes with a built-in MP4 storage format, which means you can store all your images and videos directly on the device.
The HP-MTC Portable Infrared Camera is perfect for a wide range of application occasions and scenarios. It can be used for hunting, border defense, surveillance, wildlife observation, and so much more. Its advanced Night Vision Infrared Technology allows you to capture clear images and videos even in low light conditions, making it the perfect device for night-time hunting and surveillance.
The lightweight and compact design of the HP-MTC Portable Infrared Camera makes it easy to carry around with you wherever you go. Whether you're hiking in the mountains, patrolling the border, or on a hunting trip, this device is the perfect companion to capture all your images and videos.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Here are some frequently asked questions about our Portable Infrared Camera:
Q: What is the brand name of this product?
A: The brand name of this product is Hope-Wish.
Q: What is the model number of this product?
A: The model number of this product is HP-MTC.
Q: Where is this product made?
A: This product is made in China.
Q: What is the temperature range of this camera?
A: The temperature range of this camera is -20°C to 300°C.
Q: What is the resolution of the camera?
A: The camera has a resolution of 220x160 pixels.
