Product Details:
|
| Image Modes: | Thermal, Visual, Picture-in-Picture, Fusion | Display: | 3.5 Inch LCD |
|---|---|---|---|
| Laser: | 915nm NIR | Storage Format: | MP4 |
| Wave Length: | 915nm | Color: | Black |
| Effective Visual Distance: | 700-1600m | Technology: | Night Vision Infrared |
| Highlight: | Professional Temperature Measurement Handheld Thermal Camera,Professional Handheld Thermal Camera,Multi Mode Handheld Thermal Camera |
||
Key Benefits:
Wi-Fi function
Data upload
3.5 inch LCD touch screen
Real-time analysis
Collaborative detection
Brand new UI design
Simple,direct,and promoted experience
Gravity sensor Horizontal and vertical freely
Overall, the Portable Infrared Camera is a top-of-the-line handheld thermal imager that is perfect for anyone in need of reliable and accurate night vision infrared imaging. With its advanced technology, high-quality features, and convenient storage format, this binocular is a must-have for anyone who needs to see in the dark.
Professional temperature measurement
The high and low temperatures could capture real-time point temperature measurement, line temperature measurement, regional temperature measurement, and temperature alarm

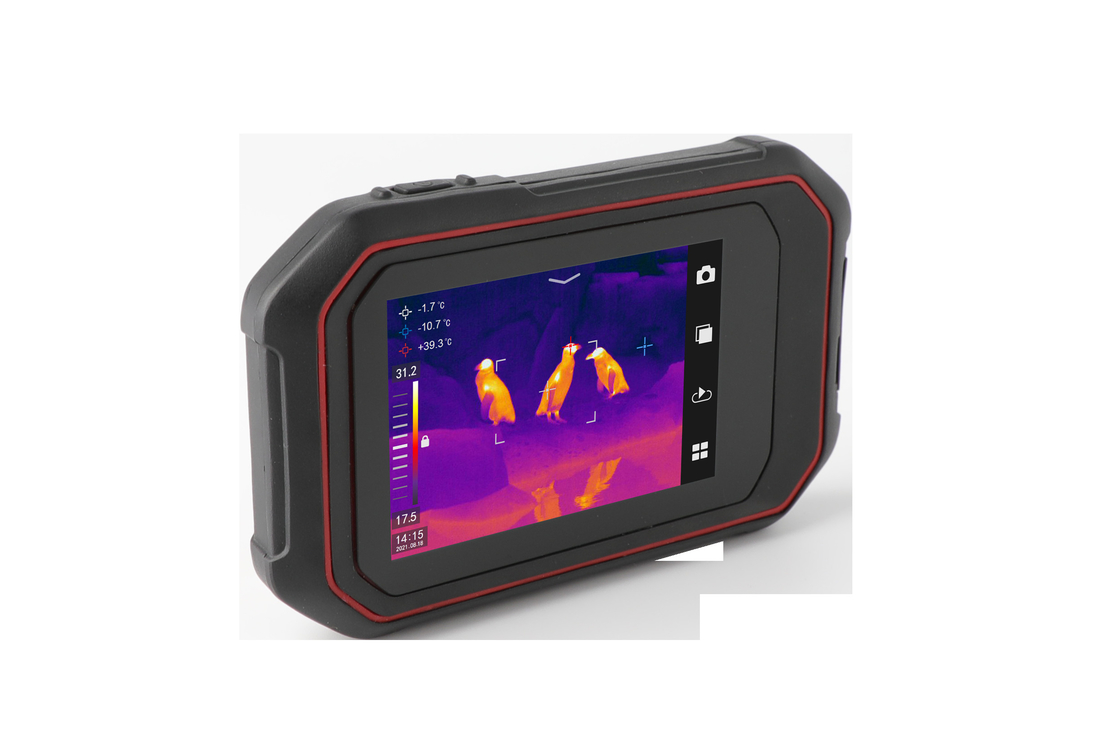

Multi-mode image display
Infrared/visible light/picture-in-picture/fusion mode 6 pseudo-color modes to assist observation
| Items | HP-MTC-C25 | |
| Detector | Type | VOx |
| Resolution | 256×192 | |
| Image | Lens | 6.0mm/F1.0 |
| Spatial resolution | 2.0mrad | |
| NETD | ≤0.05℃@30℃ | |
| Frame rate | 50Hz | |
| Focal | Focus free | |
| Spectral range | 8-14um | |
| Display | LCD | 3.5”TFT color LCD, touch screen |
| Image display | Infrared image and visible light image can be quickly switched, and infrared image and visible light image can be picture-in-picture and fusion | |
| Palette | 6 kinds of palettes to choose from (including iron red, rainbow, black and white, black and white reverse, etc.) | |
| Image Processing | Automatic/manual adjustment of contrast and brightness, automatic enhancement mode | |
| Measurement | Measurement range | -20℃ ~ +300℃ |
| Precision | ±2°C or ±2% (reading range), whichever is greater | |
| Temperature measurement correction | Automatic / manual | |
| Measurement mode | Real-time movable point, movable area (maximum temperature, minimum temperature, and average temperature measurement), line temperature measurement, temperature alarm (sound, color) | |
| Power system | Batteries | Rechargeable lithium battery, built-in |
| Battery working time | ≥4h | |
| Charging type | USB charging | |
| Power saving mode | Automatic sleep and shutdown | |
| Others | Storage | Built-in 16G |
| Flashlight | Support | |
| Gravity sensor | Yes, the UI automatically turns the direction | |
| Language | Chinese, English and other languages | |
| Color | Red & Black | |
| Image format | JPEG, with infrared raw measurement data images; | |
| MPEG4, with infrared raw measurement data images; | ||
| Environment | Working temp. | -15℃-+50℃ |
| Storage temp. | -40℃~+70℃ | |
| Humidity | ≦95％(non-condensing) | |
| Encapsulation | IPX6 | |
| Shock resistance | 30G,IEC68-2-29 | |
| Vibration resistance | 2G,IEC68-2-6 | |
| Anti-drop | 2m | |
| Physical | Weight | 200g |
| Dimension | 135mm×90mm×26mm | |
| Interface | Port | USB Type C,data transfer and charging |
| Wifi | Yes, connecting to the Android App via WiFi, you can analyze and upload data in real time. | |
The HP-MTC is a monocular type camera that is designed to be used in a variety of settings, including outdoor excursions, surveillance, and search and rescue missions. With an effective visual distance of 700-1600m and night vision capabilities up to 1km, this camera is perfect for use in low-light or dark environments.
The 3.5 inch LCD display provides clear and detailed images, making it easy to identify objects and people at a distance. The HP-MTC is perfect for security personnel, law enforcement officers, and outdoor enthusiasts who need a reliable and durable camera that can withstand tough conditions.
Outdoor enthusiasts can use the HP-MTC to capture stunning photos of nature and wildlife, while surveillance personnel can use it to keep an eye on suspicious activity from a distance. Search and rescue teams can use the camera to locate lost hikers or individuals in need of assistance.
The HP-MTC Portable Infrared Camera is a versatile and reliable device that can be used in a variety of scenarios. It is lightweight and easy to use, making it the perfect tool for anyone who needs a reliable thermal imager on the go.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
