Product Details:
|
Interface: | RJ45 | Power: | AC24V±10%,50Hz,5A |
---|---|---|---|
Night Vision: | Yes | Operational Temp: | -25℃~+55℃(-40℃ Optional) |
Lens Type: | Fixed | Sensor: | CMOS |
Sensor Type: | CMOS | Fog Penetration: | Optical Filtering |
Highlight: | Android Compatible Fog Penetration Camera,CMOS Sensor Fog Penetration Camera,CE FCC Certificate Fog Penetration Camera |

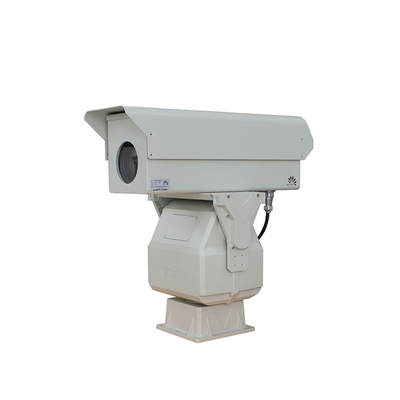

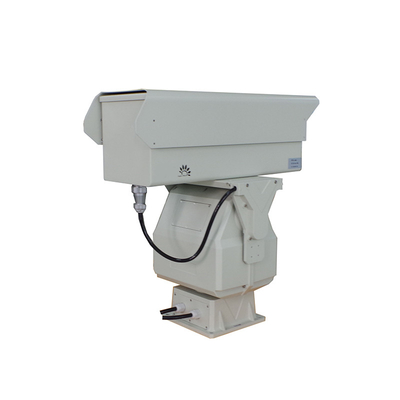

VC series long-range fog penetration camera is designed for bad weather conditions. With the intelligent photoelectric linkage, optical and AFR image processing technology, the camera uses the long wavelength light to enhance image details in foggy, moist and dusty environment, and increase the effective view distance by 1.7 to 2.3 times.
Optional 130mm~1000mm telephoto zooming lens and 2 megapixel visible color to B/W CCD, and with the 360°continuously rotation platform, the camera can monitor a region of 1.5km~10km clearly.
With built-in technical grade electronic control system, the camera can complete functions like zooming, focusing and video switch easily. One integral aluminum alloy housing and IP66 ingress protection ensures its proper functioning outdoor.
Model | HP-VC20150 |
CCD | 1/2.8'' 0.004lux low illumination color to B/W CCD |
2 mega pixel, Double wave optical design | |
Lens |
12.5-750mm 2X extender 1500mm M.O.D.:6M HD infrared correction |
Detection | 10km |
Lens | motorized /manual zoom, DC 8~12V, auto IRIS |
Fog penetration | AFR, fog filter |
Housing |
1. Material: integral aluminum alloy housing,sealed and waterproof 2.Structure: double window design 3.Surface spraying: PTA three-resistance coating, anti corrosion(optional) 4.Connector:Aviation Water-Proof Connector |
PT
|
1.50kg 2.Pan: 360o continuously, Tilt: +45°~-45°, 3.Pan: 0.01~30°/S, tilt: 0.01~15°/S 4.Preset:80 patrol and scan function |
Interface |
1*RJ45,1*AC/DC 24V 2. Military aviation Water-Proof Connector |
Protocol | .Pelco-P,Pelco-D, baud rate 2400,4800,9600,19200(optional) |
Power supply | AC/DC 24V±10%,50Hz,150W, AC220V->AC24V adapter |
environmental index |
1.Working temp: -25℃~+55℃ (-40℃ optional) 2.Storage temp.:-35℃~+65℃ 3.Humidity:<90% 4..Anti-Shake 5.Anti-shock 6. IP66 ingress protection |
Seaport&airport security, lake&river monitoring, mariculture monitoring, oilfield security, forest fire prevention, city security.
In summary, the Hope-Wish HP-VC long-range fog penetration camera is a versatile and reliable camera that can be used in a variety of applications. Its fog penetration mode, PTZ thermal camera feature, and compatibility with mobile devices make it a valuable tool for security and surveillance purposes.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Here are some frequently asked questions about our Fog Penetration Camera:
Q: What is the brand name of this product?
A: The brand name is Hope-Wish.
Q: What is the model number of this product?
A: The model number is HP-VC.
Q: Where is this product made?
A: This product is made in China.
Q: What is the purpose of a fog penetration camera?
A: A fog penetration camera is designed to capture clear images in foggy or misty conditions, where standard cameras may struggle to produce usable footage.
Q: What kind of image quality can I expect from the HP-VC?
A: The HP-VC is designed to capture high-quality images in a range of lighting conditions, including foggy or misty environments. However, actual image quality will depend on a number of factors, including the camera's settings, the lighting conditions, and the distance between the camera and the subject.
