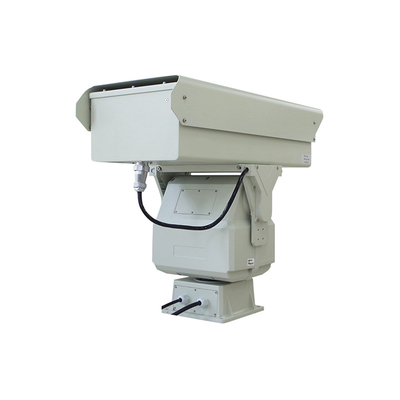

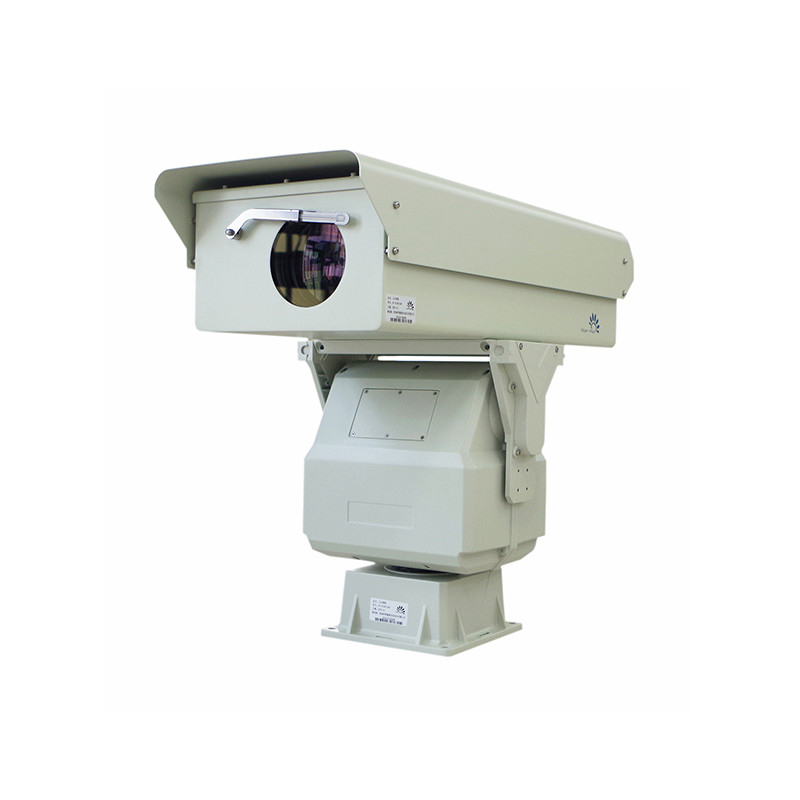

Long Range Fog Penetration Camera Security Surveillance Outdoor Camera

Product Description:

VC series long-range fog penetration camera is designed for bad weather conditions. With the intelligent photoelectric linkage, optical and AFR image processing technology, the camera uses the long wavelength light to enhance image details in foggy, moist and dusty environment, and increase the effective view distance by 1.7 to 2.3 times.

Optional 130mm~1000mm telephoto zooming lens and 2 megapixel visible color to B/W CCD, and with the 360°continuously rotation platform, the camera can monitor a region of 1.5km~10km clearly.

With built-in technical grade electronic control system, the camera can complete functions like zooming, focusing and video switch easily. One integral aluminum alloy housing and IP66 ingress protection ensures its proper functioning outdoor.



Features:

• Optical filtering and image processing technology, color and B/W fog penetration mode.
• Exclusive AFR imaging enhancement algorithm can correct the image in black/serious backlight/foggy environment and increase frame frequency to 30 fps. With the AFR, the camera can adjust image contrast in foggy environment and enhance image details.
• Optional 300mm~1000mm zooming lens and HD 2 megapixel CMOS camera.
• 360°continuously rotation platform with 20kgs/50kgs duty.
• One integral aluminum alloy housing, waterproof, IP66 ingress protection, dustproof, rainproof.



Technical Parameters:

Model	HP-VC20100
CCD	1/2.8'' 0.01lux low illumination color to B/W CCD, 2 megapixel, 1080P, video format H.264
Lens	16.7～1000mm, megapixel HD, motorized zoom,60X zoom
Detection	20km
Fog penetration	Optical filtering and AFR image processing technology
Mode	B/W color mode
Housing	One integral aluminum alloy housing, waterproof, weatherproof IP66
Load duty	50kg
PT	Pan: 360o continuously, Tilt: +45°～-45°, display angle and transmission back function.
Rotation speed	Pan: 0.01～30°/S, tilt: 0.01～15°/S
Interface	RJ45*1 (video +control), AC24V*1 (Optional RS485 with angle and transmission back function)
Power supply	AC24V±10%,50Hz,5A
Ingress protection	IP66
Operational temp.	-25℃～+55℃(-40℃ optional)
Weight	≤30kg (included PT )
Dimension	570mm*200mm*580mm (L*W*H)

Applications:

Seaport&airport security, lake&river monitoring, mariculture monitoring, oilfield security, forest fire prevention, city security.

In conclusion, the Hope-Wish HP-VC fog penetration camera is an ideal choice for various product application occasions and scenarios. Its optical filtering fog penetration mode, long-range PTZ camera, and PTZ thermal camera features make it a perfect fit for outdoor surveillance in foggy weather conditions, low-light conditions, and even complete darkness. Its power source and operational temperature range make it suitable for use in various weather conditions and extreme weather conditions.

Company:

Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.

FAQ:

A: The brand name of the fog penetration camera is Hope-Wish.

2. Q: What is the model number of the fog penetration camera?

A: The model number of the fog penetration camera is HP-VC.

3. Q: Where is the fog penetration camera manufactured?

A: The fog penetration camera is manufactured in China.

4. Q: What is the resolution of the fog penetration camera?

A: The fog penetration camera has a high resolution of 1080p.

5. Q: Can the fog penetration camera be used for outdoor surveillance?

A: Yes, the fog penetration camera is suitable for outdoor surveillance as it is weatherproof and has night vision capabilities.
