Product Details:
|
| Field Of View: | 120 Degrees | Power Source: | AC/DC |
|---|---|---|---|
| Compatibility: | IOS/Android | Ccd: | 2 Megapixel, 1080P |
| Power: | AC24V±10%，50Hz，5A | Operational Temp: | -25℃～+55℃(-40℃ Optional) |
| Night Vision: | Yes | Sensor: | CMOS |
| Highlight: | 120 Degrees Fog Penetration Camera,Optical Filtering Fog Penetration Camera,1080P Fog Penetration Camera |
||

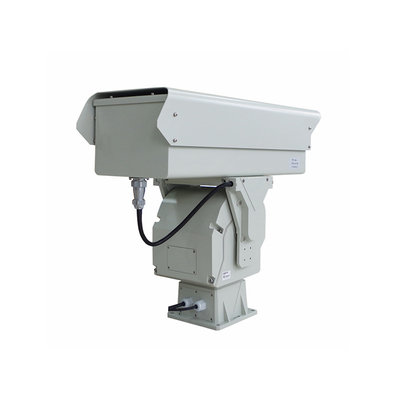

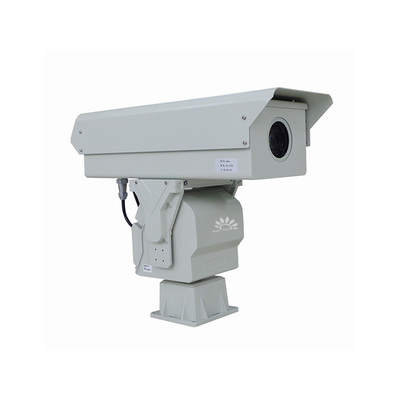

VC series long-range fog penetration camera is designed for bad weather conditions. With the intelligent photoelectric linkage, optical and AFR image processing technology, the camera uses the long wavelength light to enhance image details in foggy, moist and dusty environment, and increase the effective view distance by 1.7 to 2.3 times.
Optional 130mm~1000mm telephoto zooming lens and 2 megapixel visible color to B/W CCD, and with the 360°continuously rotation platform, the camera can monitor a region of 1.5km~10km clearly.
With built-in technical grade electronic control system, the camera can complete functions like zooming, focusing and video switch easily. One integral aluminum alloy housing and IP66 ingress protection ensures its proper functioning outdoor.
| Model | HP-VC2150 |
| CCD | 1/2.8'' 0.004 lux low illumination color to B/W CCD |
| 2 mega pixel,Double wave optical design | |
| Lens |
18-550 mm M.O.D.:3M 105mm super caliber |
| Detection | 5～7km |
| Lens | motorized /manual zoom, DC 8~12V, auto IRIS |
| Fog penetration | AFR, fog filter |
| Housing |
1. Material: integral aluminum alloy housing,sealed and waterproof 2.Structure: double window design 3.Surface spraying: PTA three-resistance coating, anti corrosion(optional) 4.Connector:Aviation Water-Proof Connector |
|
PT
|
Load: 30KG Pan: 360o continuously, Tilt: +40°～-45°, 3.Pan: 0.01～30°/S, tilt: 0.01～15°/S 4.Preset:80 patrol and scan function
|
| Interface |
1*RJ45,1*AC/DC 24V 2. Military aviation Water-Proof Connector |
| Protocol | .Pelco-P,Pelco-D, baud rate 2400,4800,9600,19200(optional) |
| Power supply | AC/DC 24V±10%,50Hz,150W, AC220V->AC24V adapter |
|
environmental index |
1.Working temp: -25℃～+55℃ (-40℃ optional) 2.Storage temp.:-35℃～+65℃ 3.Humidity:<90% 4..Anti-Shake 5.Anti-shock 6. IP66 ingress protection |
Seaport&airport security, lake&river monitoring, mariculture monitoring, oilfield security, forest fire prevention, city security.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
What is the brand name of the Fog Penetration Camera?
The brand name of the Fog Penetration Camera is Hope-Wish.
What is the model number of the Fog Penetration Camera?
The model number of the Fog Penetration Camera is HP-VC.
Where is the Fog Penetration Camera manufactured?
The Fog Penetration Camera is manufactured in China.
What is the resolution of the Fog Penetration Camera?
The Fog Penetration Camera has a resolution of 1080p.
Does the Fog Penetration Camera have night vision?
Yes, the Fog Penetration Camera has night vision up to 10 meters.
