Product Details:
|
| Frequency: | 70MHz-6GHz Full Band | Hophopping Number: | 4 |
|---|---|---|---|
| Detection Range: | 5-10km | Radial Velocity Range: | 0.4m/s-60m/s |
| Update Rate: | 1.2s | Distance Accuracy: | ≤ 5m |
| Highlight: | Advanced border surveillance radar,Integrated border surveillance radar,full band border surveillance radar |
||
Overview:

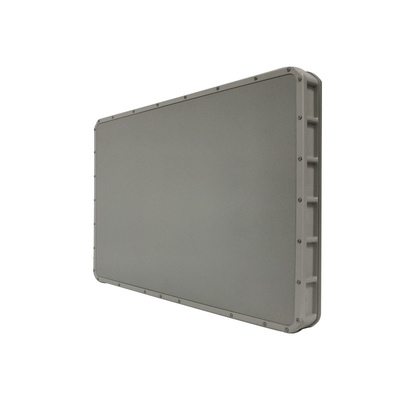

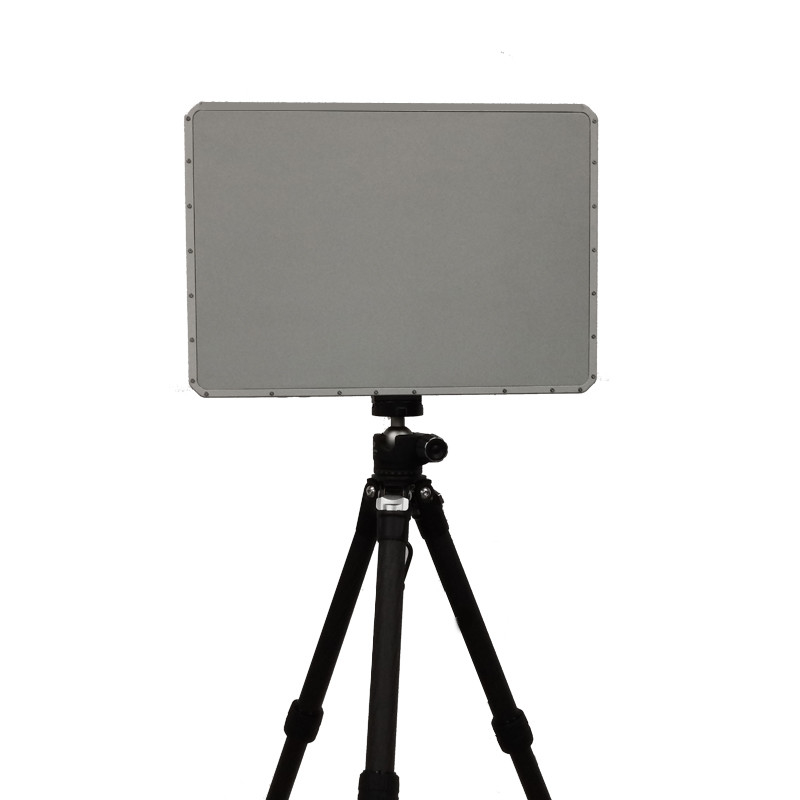

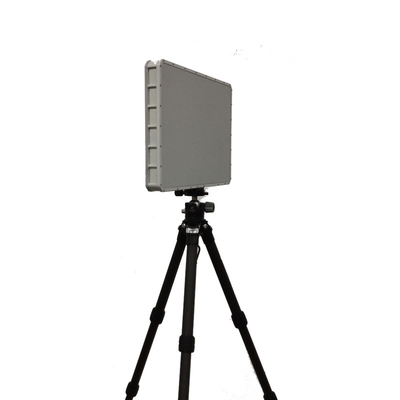

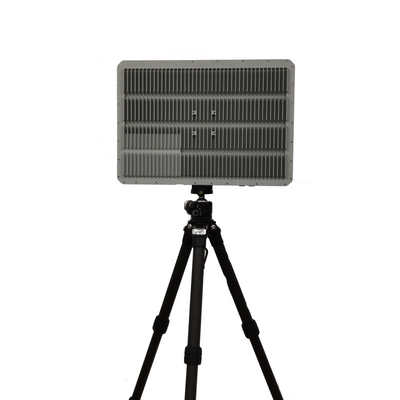

HP-2D-RD7500KU moving target surveillance radar is designed to detect and track moving targets, including various low RCS and slow moving targets such as pedestrian, vehicles, and vessels. The radar adopts the active phased array and digital pulse compression system, providing accurate target detection, measurement ,and tracking.
With adaptive clutter suppression technology, the radar can effectively filtering out false positives caused by environmental clutter such as trees, crops, clouds, rainwater, and waves.
Key Benefits :
| Model | HP-2D-RD7500KU |
| Frequency | Ku Band |
| Frequency hopping number | 8 |
|
Detection range |
≥ 7.5km(human) Ø≥ 12km(small vehicles) ≥ 20km( ships) |
| Radial velocity range |
0.4m/s-60m/s
|
|
Update Rate:
|
1.2s |
| Distance accuracy: | ≤ 5m |
| Azimuth accuracy | ≤ 0.25° |
| Velocity accuracy |
Ø≤ ± 0.1m/s ± 2%
|
| Azimuth coverage |
Ø90 °
|
| Simultaneous tracked targets | ≥100 |
| Weight | ≤ 5kg |
| Power consumption |
≤ 80W
|
| Power supply range |
ØDC 18-28V
|
| Working temperature |
-40~+55 ℃
|
| Communication interface |
ØGigabit Ethernet
|
| Protection level |
IP67
|
| Size((H x W x D) |
425 * 300 * 48mm
|
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Thank you for purchasing our Thermal Imaging Binoculars. To ensure the safe delivery of your product, we have carefully designed our packaging and shipping process. Please read the following information before opening your package.
Our Thermal Imaging Binoculars will be packaged in a sturdy cardboard box to protect them during transit. The box will be sealed with strong packing tape to prevent any damage or tampering.
Inside the box, you will find your binoculars wrapped in a layer of protective foam. This foam will provide additional cushioning and shock absorption during shipping.
Please handle the box with care and do not use any sharp objects to open it, as this may cause damage to the contents inside.
We will ship your Thermal Imaging Binoculars using a reputable courier service, such as UPS or FedEx. The estimated delivery time will depend on your location, but we will provide you with a tracking number so you can monitor the progress of your package.
For international orders, please note that additional customs fees or taxes may apply. These fees are the responsibility of the buyer and will not be covered by our company.
If you have any questions or concerns about the packaging or shipping of your Thermal Imaging Binoculars, please do not hesitate to contact us.
Thank you again for choosing our product. We hope you enjoy your new Thermal Imaging Binoculars!
Looking for a customized Long Range Thermal Camera? You've come to the right place! Our Hope-Wish HP-DMS Long Range Thermal Camera is the perfect solution for your needs. Made in China, this camera can detect temperatures ranging from -40°C to +550°C with a minimum focus distance of 1.5m. With a detection range of 1.2km, this Long-Distance Thermal Camera is perfect for long-range surveillance. The image frequency of 9Hz ensures that you get real-time footage of the target area. Weighing only 2.5kg, this Thermal Imaging Camera is lightweight and easy to carry around. Contact us to discuss your customization requirements today!
Our Long Range Thermal Camera product comes with comprehensive technical support and services to ensure the best possible user experience:
Our expert technical support team is always available to assist with any questions or issues that arise, and our services are designed to maximize the value of your Long Range Thermal Camera investment.
