Product Details:
|
| Weight: | 15kg | Temperature Range: | -40°C To +70°C |
|---|---|---|---|
| Tilt: | -45 ° ～ + 90 ° | Pan: | N × 360 ° Continuous Rotation |
| Detection Range: | 5-10KM | Sensor Type: | PTZ Thermal |
| Resolution: | 640x512 | Minimum Focus Distance: | 5-10KM |
| Highlight: | Surveillance Thermal Camera,Long Distance Thermal Camera,Spectral Range Thermal Camera |
||

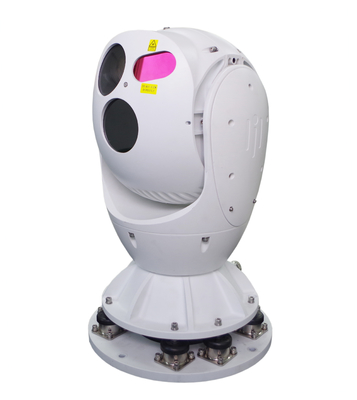

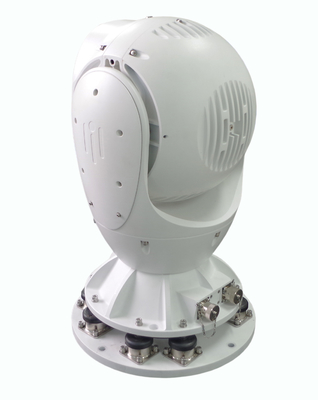

ZS20 Ship Mounted Multi-sensor Camera integrates HD visible light camera, uncooled thermal camera, laser ranging finder, automatic tracking, gyro stabilization, intelligent analysis and precise electronic control. It is designed for ship / shipboard video acquisition and sea surface warning, key target warning, radar linkage and other applications designed long-distance detection system, which can adapt to all-weather,all-time, full-dimensional discovery, positioning, tracking, identification and tracking of the target function, the smallest distance to small ships and islands can be up to 8 km.
Military quality design, the shell is made of super strong aluminum alloy material, spherical low wind resistance design, strong wind resistance, low agitation. Adopting internal and external double-layer "three-proof" technology and vacuum nitrogen-filled sealing technology, the protection grade of the whole machine reaches IP66, and the special salt-spray protection design, the protection grade reaches C5-M level, which effectively ensures the long-term stable operation of the equipment in the harsh ring mirror of the sea.
The Long Range Thermal Camera is a durable and rugged camera, designed to withstand extreme temperatures and harsh weather conditions. It is built to last, providing reliable performance and long-lasting operation.
Overall, the Long Range Thermal Camera is an essential tool for anyone looking for reliable and accurate long-range surveillance and monitoring. Its advanced features and durable design make it the perfect choice for a wide range of applications.
Ship / ship board video collection, sea warning, important target alert, etc.
The HP-ZS20 is also incredibly versatile, with a weight of only 15kg and a pan function that allows for N x 360° continuous rotation. This makes it easy to install and operate in a variety of settings, from industrial sites and power plants to border control and military operations.
Whether you need to monitor a large area from a distance or detect potential threats in real-time, the Hope-Wish HP-ZS20 Long Range Thermal Camera is the perfect tool for the job. So why wait? Invest in the best and experience the ultimate in long-range thermal imaging today!
| Model | HP-ZS20GIS-RC2132 |
| Rotation range |
1. Pan: N × 360 ° continuous rotation 2. Tilt: -45 ° ～ + 90 ° 3. Limit: The pitch has a soft limit function, the program can be set |
| Spinning speed |
1. Horizontal speed: 0.1 ° ～ 80 ° / s 2. Pitching speed: 0.1 ° ～ 80 ° / s 3. Acceleration: horizontal 120 ° / s2, pitch 120 ° / s2 4. Drive mode: direct drive with vigorous torque rare earth permanent magnet synchronous motor, high-speed start-stop, smooth tracking with radar linkage |
| Positioning accuracy | Positioning accuracy: up to 0.02 °, high-frequency fine-tuning pulse precision motor drive, digital angle sensor servo |
| Turntable zero position | Zero setting: support the setting of pan and pitch zero |
| Stability accuracy | 2mrad (RMS), two-axis gyro stable |
| Cruise scan |
1. Preset position: no less than 255 2. Path scan: support preset point cruise, line scan, scan speed can be set 3. Watch function: support watch preset, line scan and cruise |
| Data return |
1. Lens servo: support lens field of view, magnification, ZOOM / FOCUS value query, return, positioning function 2. Turntable angle: support real-time / query return and positioning functions of horizontal and pitch angles |
| Tracking mode |
1. Support manual control tracking 2. Support radar linkage automatic tracking 3. Support front-end module automatic tracking (optional) 4. Support automatic tracking of back-end software |
| Enhancement |
1. Motor protection: turntable blocking protection, high reliability 2. Fault detection: support power-on self-check, status query and fault code feedback 3. Upgrade and maintenance: remote restart, remote upgrade function, convenient system maintenance |
| Electrical Interface |
1. Network interface: 1 channel 10M / 100M adaptive Ethernet port (including thermal image + high-definition visible light + RS422 / 485 control) 2. Power source: 1 way DC24V 3. Physical interface: military-grade aviation waterproof plug, protection grade IP67 |
| Protocol |
1. Network protocol: support TCP / IP, UDP, IPv4 / v6, HTTP, RTP, RTSP; support Onvif, GB28181 network video protocol 2. PTZ control protocol: Pelco-D industry standard and other multi-protocols, baud rate 2400, 4800, 9600, 19200 optional, customizable private protocol |
| Environmental index |
1. Working temperature: -25 ℃ ～ + 60 ℃ 2. Storage temperature: -30 ℃ ～ + 70 ℃ 3. Humidity: <95% RH 4. Anti-lightning surge: power supply 4000V, communication video signal 2000V 5. Anti-salt spray: PH value 6.5 ~ 7.2, continuous spraying for 96 hours, can still work normally 6. Vibration resistance: meets GJB150A.16 shipboard environmental requirements 7. Protection level: IP67 |
| Machine power supply |
1. Power supply: equipped with ultra-wide input power adapter, AC90V ～ 305V to DC24V 2. Power consumption: The maximum power consumption of the turntable ≤250W, the stable power consumption ≤50W |
| Volume and weight |
|
| Cameras | |
| Visible Camera |
1. Detector: 1/3 "low illumination CMOS 2. Resolution: 1920 × 1080 (2 million pixels) 3. Illumination: color 0.002 Lux ＠ (F1.2, AGC ON), black and white 0.0002Lux ＠ (F1.2, AGC ON) 4. Lens focal length: 8 ～ 320mm continuous zoom 5. Action distance: Under the conditions of atmospheric visibility greater than 10km, air humidity less than 50%, and background imperviousness, the action distance to small ships or islands and reefs can reach 8km. 6. Lens control: electric zoom, manual / auto focus 7. Interface and video format: IP network output, H.265 / H.264 |
| Laser lighting |
1. Wavelength: 808nm 2. Power: 5W 3. Laser lens: 2 ° -30 ° 4. Angle control: DSS digital step lighting angle control technology |
| Recommended configuration of monitoring workstation | |
|
Host configuration (Recommended only, provided by user) |
CPU: 6 cores (i7 8700 and above) Memory: 16GB or more Hard Disk: 1TB SATA Display: resolution 1920 * 1080 Network: LAN or 100M Ethernet System: Windows 7 or Windows 10 Database: MySQL 5.1 and above Other: Windows SDK, MFC bottom support library Power supply; keyboard, mouse, etc. |
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
The Long Range Thermal Camera product comes with a range of technical support and services to ensure optimal performance and customer satisfaction. Our team of experts is available to assist with:
We are committed to providing timely and efficient support to our customers. Please do not hesitate to contact us with any questions or concerns.
Q: What is the brand name of this thermal camera?
A: The brand name of this thermal camera is Hope-Wish.
Q: What is the model number of this thermal camera?
A: The model number of this thermal camera is HP-ZS20.
Q: Where is this thermal camera manufactured?
A: This thermal camera is manufactured in China.
Q: What is the range of this thermal camera?
A: This thermal camera has a long range capability.
Q: What are the primary uses of this thermal camera?
A: This thermal camera is commonly used for surveillance, security, and inspection purposes.
