Product Details:
|
| Frequency: | 70MHz-6GHz Full Band | Hophopping Number: | 4 |
|---|---|---|---|
| Detection Range: | 5-10km | Radial Velocity Range: | 0.4m/s-60m/s |
| Update Rate: | 1.2s | Distance Accuracy: | ≤ 5m |
| Highlight: | Full Band Drone Detection Radar,Urveillance Drone Detection Radar,Compact Full Band Drone Detection Radar |
||
Overview:

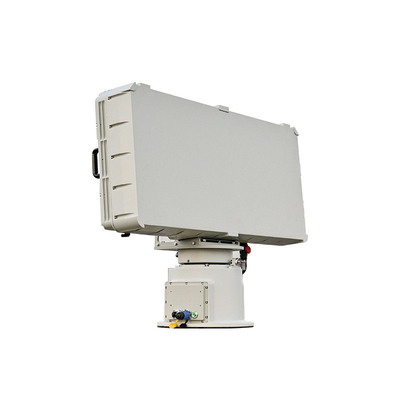

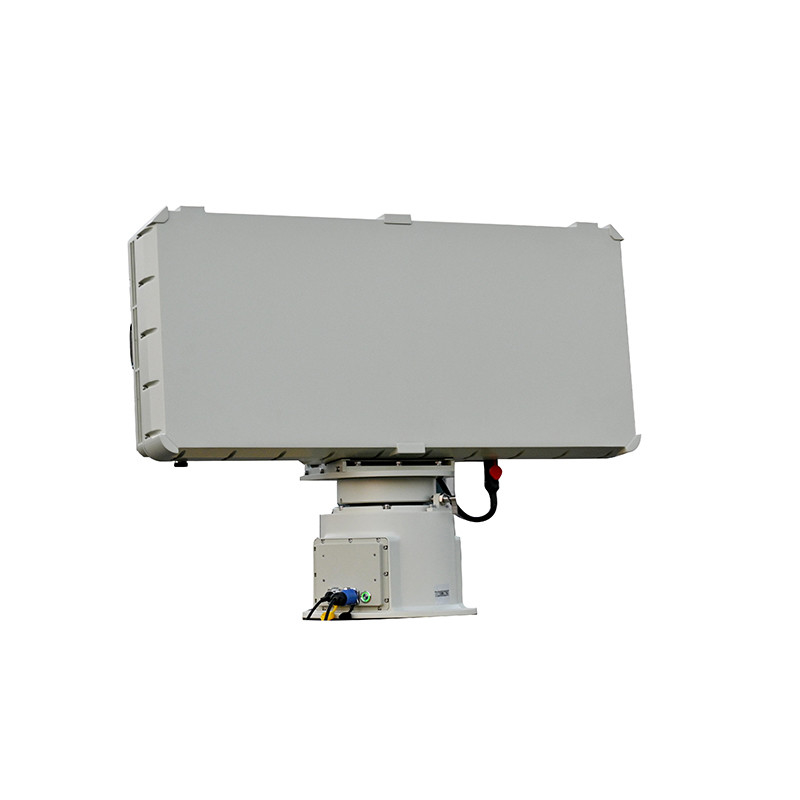

HP-3D-RD10000XLK three coordinate surveillance radar is is mainly composed of one radar array, one mechanical turntable, and one power adapter. It is used for the detection, surveillance, and target indication of micro/small civilian drones in key areas such as borders, perimeters, and military bases. It can accurately provide trajectory information such as target orientation, distance, altitude, and speed.
The Anti Drone System uses a chipset from NVIDIA, a leading manufacturer of computer hardware, making it a highly sophisticated and dependable solution. This anti-drone technology is effective in detecting and neutralizing any UAV radar, making it an excellent choice for securing critical infrastructure, military bases, and other sensitive areas.
Key Benefits:
| Model | HP-3D-RD10000XLK |
| Working frequency band | S Band |
|
Beam scanning method |
Phased array system (azimuth-scanning+elevation-scanning) pulse Doppler |
| Detection distance | ≥10km (Phantom 4 UAV) |
| Blind zone distance | ≤100m |
| Coverage | 360° |
| Pitch coverage | ≥40° |
| Angle measurement accuracy |
azimuth≤0.5° (RMS), elevation≤1° (RMS) |
| Ranging accuracy | ≤10m (RMS) |
| Data rate | ≥0.2Hz |
| Target capacity | ≥500 |
| Detection speed range | 1～85m/s |
| Operating temperature | -40 ~ +55℃ |
| Protection class | IP66 |
| Weight | ≤60 kg |
| Power supply | DC48V or AC220V |
| Power consumption | ≤250W |
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Frequently Asked Questions about Hope-Wish Anti Drone System:
Q: What is the model number of the Hope-Wish Anti Drone System?
A: The model number is HP-.
Q: Where is the Hope-Wish Anti Drone System manufactured?
A: It is manufactured in China.
Q: What is the range of the Hope-Wish Anti Drone System?
A: The range can reach up to 2km in open areas.
Q: Can the Hope-Wish Anti Drone System be used in all weather conditions?
A: Yes, it is designed to operate in various weather conditions including rain, snow, and fog.
Q: Does the Hope-Wish Anti Drone System require any special license or permit to operate?
A: It depends on your location and local laws. Please check with your local authorities for any necessary permits or licenses.
