Product Details:
|
| Frequency: | 70MHz-6GHz Full Band | Hophopping Number: | 4 |
|---|---|---|---|
| Detection Range: | 5-10km | Radial Velocity Range: | 0.4m/s-60m/s |
| Update Rate: | 1.2s | Distance Accuracy: | ≤ 5m |
| Highlight: | Drone Jammer Price,Counter drone Drone Jammer,Link Radar Drone Jammer |
||
Overview:

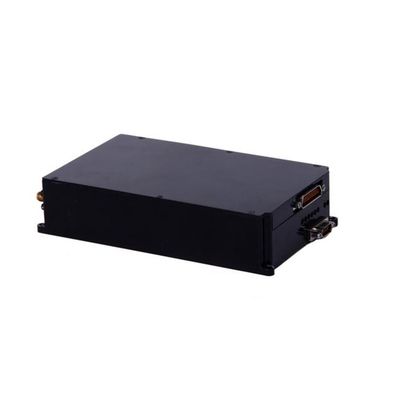

HP-NET1371A is a wireless data link airborne terminal developed for UAV. It provides two network interfaces and two transparent serial ports for applications. It can connect to network cameras to transmit one or more channels of HD real-time video and support the telemetry and remote control of drones. It is compact in size and weighs only about 60g, suitable for occasions with strict restrictions on weight and volume. The data stream transmission delay is less than 7ms, which is almost real-time. It supports multiple networking modes such as point-to-point, point-to-multipoint, and relay. It can be widely used in various industrial occasions.
Key Benefits:
| HP-NET1371A | ||
|
System parameters |
Transmission distance | ≥15km@data 4Mbps, omnidirectional antenna |
| Data delay | ≤7ms | |
| MIMO | dual antenna, 2T2R/1T2R configurable | |
| weight | ≤60g | |
| Dimensions | 72mm*48mm*10mm | |
| Power supply voltage | DC:7V~28V | |
| Equipment power consumption | transmitting power consumption <16W, receiving power consumption ≤4W | |
|
RF parameters |
Modulation mode | BPSK/QPSK/16QAM/64QAM adaptive |
| Working frequency band | 1.4GHz(other frequency can be customized) | |
| Channel bandwidth | 1MHz~8MHz | |
| Maximum sensitivity | -110dbM (1M bandwidth, BPSK, FEC1/2, dual antenna) | |
| Output power | 10~30dBm | |
|
Data parameters |
Data bandwidth | Max. 30Mbps,customizable 300Mbps |
| Data security | Support AES128/256 encryption Support LDPC check | |
| Serial port baud rate | 9600bps～230.4Kbps | |
|
Connectors |
Power supply/data | J30J-21,RS232 |
| Antenna interface | SMA-K*2 | |
| Network interface | J30J-21*2 | |
|
Environmental parameters |
Working temperature | -40℃~+80℃ |
| Humidity | ＜95%,non-condensing | |
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
The Anti Drone System is a sophisticated product that requires technical expertise to operate and maintain. Our team of highly skilled technicians and engineers are available to provide technical support and services to ensure optimal performance of the system. Our services include:
We are committed to providing timely and effective support to our customers to ensure the Anti Drone System operates at peak performance. Contact us for more information on our technical support and services.
Q: What is the brand name of the Anti Drone System?
A: The brand name of the Anti Drone System is Hope-Wish.
Q: What is the model number of the Anti Drone System?
A: The model number of the Anti Drone System is HP-.
Q: Where is the Anti Drone System manufactured?
A: The Anti Drone System is manufactured in China.
Q: What is the range of the Anti Drone System?
A: The range of the Anti Drone System depends on the specific model, but it typically ranges from 1km to 10km.
Q: Is the Anti Drone System easy to install?
A: Yes, the Anti Drone System is designed to be easy to install and typically only requires a few hours to set up.
