Product Details:
|
| Detection Range: | 5-10km | Distance Accuracy: | ≤ 5m |
|---|---|---|---|
| Wave Band: | Ku | Radar Range: | 3KM |
| Azimuth Angle: | 0°-360° Scan | Detection Accuracy: | 99% |
| Jamming Technology: | Analog | Compatibility: | Multi-Platform |
| Waterproof: | IP68 | Dimensions: | 500mm X 500mm X 500mm |
| Interception Success Rate: | 98% | Movement: | Portable |
| Highlight: | UAV communication Data Link,Long Range UAV communication Data Link,Drone detection radar Data Link |
||
Overview:
HP-NET1501A is a wireless data link airborne terminal developed for UAV. It provides two network interfaces and two transparent serial ports for applications. It can connect to network cameras to transmit one or more channels of HD real-time video and support the telemetry and remote control of drones. It is compact in size and weighs only about 160g, suitable for occasions with strict restrictions on weight and volume. The data stream transmission delay is less than 7ms, which is almost real-time. It supports multiple networking modes such as point-to-point, point-to-multipoint, and relay. It can be widely used in various industrial occasions.
Key Benefits:
| HP-NET1501A | ||
|
System parameters |
Transmission distance | ≥30km@data 5Mbps |
| Data delay | ≤7ms | |
| MIMO | dual antenna, 2T2R/1T2R configurable | |
| weight | ≤ 160g | |

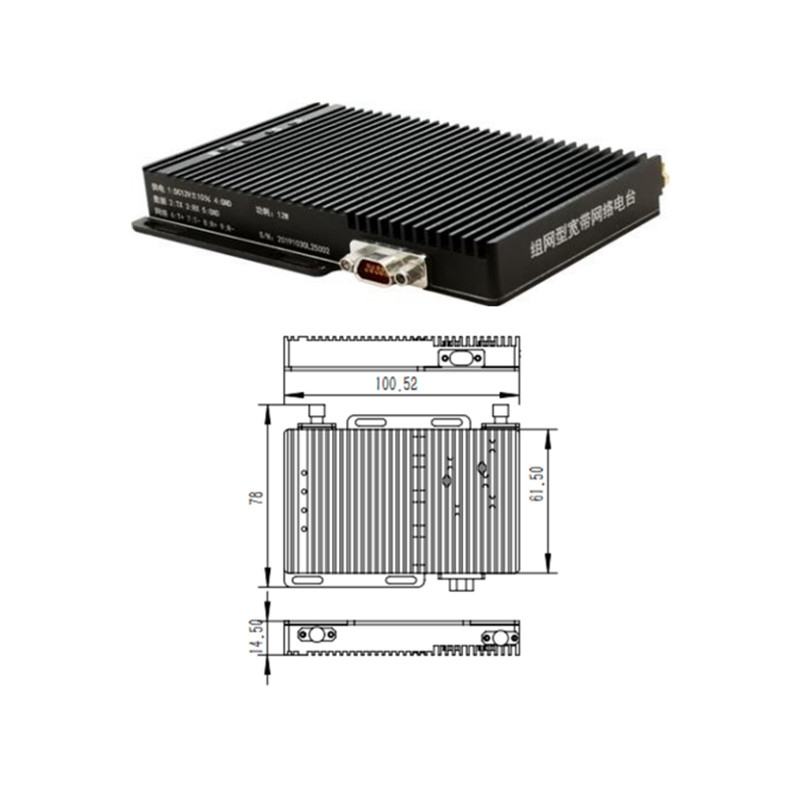

| Dimensions | 78mm*101mm*15mm | |
| Power supply voltage | DC:7V~28V | |
| Equipment power consumption | transmitting power consumption <16W, receiving power consumption ≤4W | |
|
RF parameters |
Modulation mode | BPSK/QPSK/16QAM/64QAM adaptive |
| Working frequency band | 1.4GHz(other frequency can be customized) | |
| Channel bandwidth | 1MHz~8MHz | |
| Maximum sensitivity | -108dbM (1M bandwidth, BPSK, FEC1/2, dual antenna) | |
| Output power | 10~30dBm | |
|
Data parameters |
Data bandwidth | Max. 30Mbps |
| Data security | Support AES128/256 encryption Support LDPC check | |
| Serial port baud rate | 9600bps～230.4Kbps | |
|
Connectors |
Power supply/data | J30J-21,RS232 |
| Antenna interface | SMA-K*2 | |
| Network interface | J30J-21*2 | |
|
Environmental parameters |
Working temperature | -40℃~+80℃ |
| Humidity | ＜95%,non-condensing | |
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Q: What is the brand name of this Anti Drone System?
A: The brand name of this Anti Drone System is Hope-Wish.
Q: What is the model number of this Anti Drone System?
A: The model number of this Anti Drone System is HP-.
Q: Where is this Anti Drone System manufactured?
A: This Anti Drone System is manufactured in China.
Q: What is the range of this Anti Drone System?
A: The range of this Anti Drone System is up to 5 kilometers.
Q: Can this Anti Drone System be used indoors?
A: Yes, this Anti Drone System can be used both indoors and outdoors.
