Features:

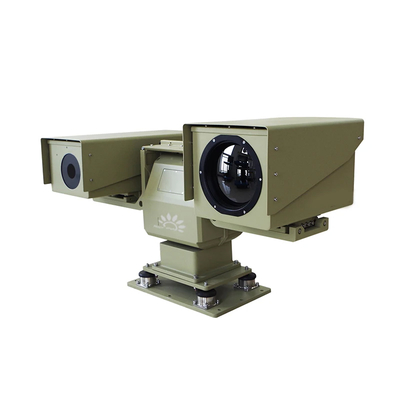

- Consist of infrared thermal imaging, visible light camera,anti-shock reinforcement pan tilt, accurate position.
- Full-reinforced structural design, super-strength stainless steel center bearing, multi-round reinforcement designed to meet military vehicle environmental vibration, anti-shock requirements
- Housing using superior aluminum material, IP66 protection, anti-rain, anti-dust, can adapt to a variety of harsh environments
- NETD 50mk, higher than other cameras, obtain more delicate picture quality, little effect by rain and snow fog.
- 20kg, 50kg anti-shock reinforcement heavy duty CNC pan tilt, 360 continuous rotation observation, no dead ends, smooth operation, image small dithering.
Technical Parameters:
| Model |
GTVC4307-1930-IP |
GTVC4510-2030-IP |
GTVC4515-2050-IP |
| Detection |
Vehicle: 6500m |
Vehicle: 8600m |
Vehicle: 13000m |
| |
Human: 2500m |
Human: 3400m |
Human: 4800m |
| Identification |
Vehicle:1800m |
Vehicle: 2400m |
Vehicle: 3400m |
| |
Human: 700m |
Human: 900m |
Human: 1300m |
| Thermal sensor |
VOx uncooled detector, 324*256(640*512 optional); 7.5um-14um spectral response, 50mk NETD, 2X digital zoom; Image processing; AGC; 10 pseudo color; SDE image enhancement; |
| |
|
| Thermal lens |
25mm～75mm |
21mm～105mm |
31mm～155mm |
| |
3CAM precision mechanizing(auto focus optional) |
| FOV |
13°～4.3° |
18°～3.4° |
11.2°～2.2° |
| Visible camera |
1/1.8'' Sony CMOS, 2.1 mega pixels, 1920*1080, auto B/W to color at 0.001lux; ICR optical filter; H.264 |
| Visible Lens |
4.3mm～129mm, mega pixels, auto focus |
12～320mm, mega pixels, motorized zoom and focus, auto iris |
15～528mm,mega pixels, motorized zoom and focus, auto iris(25～750mm optional) |
|
GPS
(optional)
|
Positioning accuracy |
10m |
| Time update cycle |
1ms,100ms,200ms |
| Time Accuracy |
0.001s |
| Baud rate |
48,009,600,192,003,800,000,000,000,000 |
| Sensitivity |
detect-148dBm,tracking-165dBm |
| PT and housing |
Housing |
Integrated multi-window, aluminum, with wiper, waterproof seal, IP66 protection class, dustproof and waterproof |
| Internal control circuit |
pan, tilt, rotate( PWM drive), the lens zoom, focus, camera DC12V power supply, laser ranging finder high and stable power supply DC24V ± 1V, color to W/B aux command, preset function, the thermostat function. |
| Load duty |
30kg |
50kg |
|
|
Applications:
- Surveillance Systems: The dual sensor thermal camera is ideal for surveillance systems in both indoor and outdoor environments. Its high resolution thermal camera module ensures clear and detailed imaging even in low-light conditions.
- Industrial Inspections: The Hope-Wish HP-HTVC can be used for industrial inspections, such as detecting overheating equipment or monitoring manufacturing processes. Its infrared thermal camera module enables accurate temperature measurements with an accuracy of +/-2°C or 2%.
- Security Monitoring: With its reliable performance and wide operating temperature range of -20°C to +50°C, this thermal camera is suitable for security monitoring applications in critical infrastructures, public spaces, and commercial buildings.
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
Customization:
Enhance your surveillance capabilities with our Product Customization Services for the Hope-Wish HP-HTVC Dual Sensor Thermal Camera. This Infrared Thermal Camera Module, manufactured in China, weighs 10kg and offers a high image resolution of 640 X 512. Equipped with a USB 2.0 interface and a Fixed focus mode, this camera operates efficiently in temperatures ranging from -20°C to +50°C.
FAQ:
Q: What is the brand name of this thermal camera?
A: The brand name of this thermal camera is Hope-Wish.
Q: What is the model number of this thermal camera?
A: The model number of this thermal camera is HP-HTVC.
Q: Where is this thermal camera manufactured?
A: This thermal camera is manufactured in China.
Q: What type of sensors does this thermal camera have?
A: This thermal camera features dual sensors for enhanced thermal imaging capabilities.
Q: Can this thermal camera be used for night vision purposes?
A: Yes, this thermal camera can be used for night vision applications due to its dual sensor technology.
