Product Details:
|
| Dimensions: | 190 X 80 X 60 Mm | Spectral Range: | 7.5 To 13.5 μm |
|---|---|---|---|
| Field Of View: | 20° X 16° | Lens: | F1.2, 50mm |
| Power Supply: | 4 X AA Batteries | Frame Rate: | 50 Hz |
| Weight: | 3kg | Image Resolution: | 640 X 480 |
| Highlight: | Professional Thermal Imaging Monocular,Night Vision Thermal Imaging Monocular,Military Thermal Imaging Monocular |
||

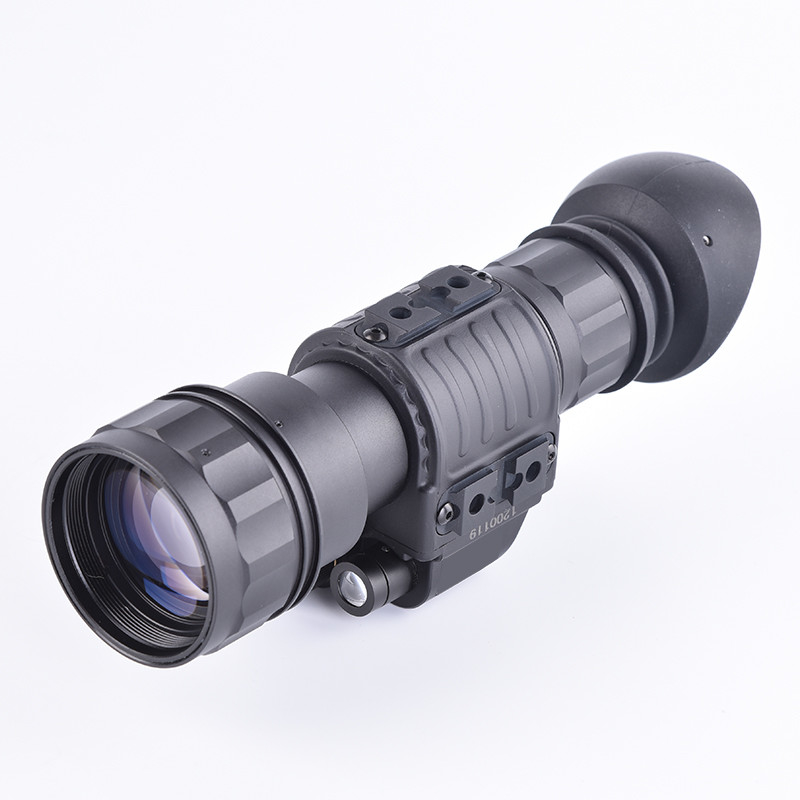

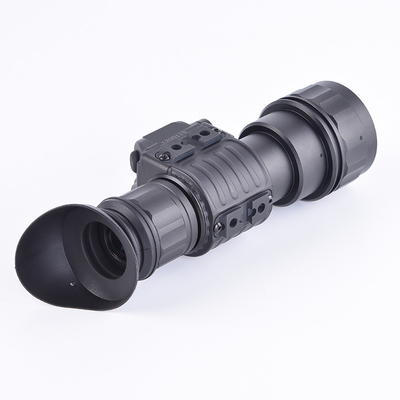

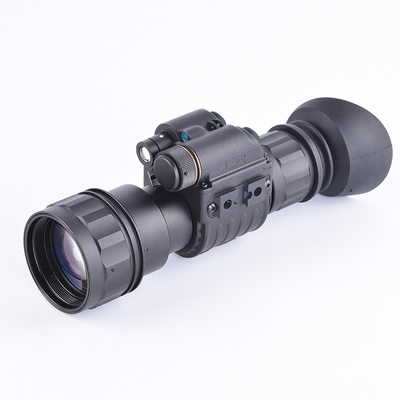

HP-DM2013 is a very popular military grade multifunctional night vision product in the market. As a classic monocular low-light night vision device, high magnification - long viewing distance, large objective lens - strong light transmission, can be equipped with 2nd generation + or quasi-3rd generation (G450+) image intensifier tube according to customer needs . As a multifunctional monocular night vision device, it can be connected to mobile phones, cameras, etc. for night shooting and functional accessories. The diversity of optional accessories greatly expands the scope of use of this night vision device. This product has strong practicability and can be used for night hunting, night fishing, forest fire prevention, power line inspection, home security, public security night patrol, investigation and evidence collection, frontier anti-smuggling, etc. It is an ideal device for both military and civilian use.
Overall, the Thermal Imaging Monocular offers impressive performance and durability, making it a valuable asset for anyone in need of a reliable night vision scope. With its advanced features, including a high frame rate, humidity resistance, shockproof construction, premium lens quality, and lightweight design, this monocular provides exceptional functionality and ease of use for all users.
1. The perfect combination of durability and fine workmanship.
2. The night vision device uses the 2nd generation + level image intensifier (DM2013), and can also be equipped with a higher level quasi-3rd generation (DM3013) intensifier, which is suitable for different budgets and task requirements.
3. Military-grade multi-layer coating standard: ultra-broadband multi-layer anti-reflection coating can suppress the broadband reflection of the glass surface of the lens, reduce light loss, and allow more light to pass through the lens to obtain a good observation effect.
4. A separate infrared intensifier can be selected to enhance the effect of night use and expand the scope of application; an optional sight accessory can be used as a simple night vision sight; it can be connected with digital cameras, cameras, camcorders, mobile phones, etc. to shoot at night use.
5. The spring embedded design of the battery cover ensures that the night vision device can better contact with the battery and the spring is not easy to be damaged, and it is also easier to replace the battery quickly.
6. The eyepiece visor, built-in IR light and low battery indicator (displayed in the eyepiece) enhance the user's concealment.
| Model | HP-DM2013 |
| IIT | Gen2+ |
| Resolution (lp/mm) | 57-64 |
| Photocathode type | S25 |
| S/N (dB) | 17-21 |
| Luminous sensitivity (μА/lm) | 500-600 |
| MTTF (hrs) | 10,000 |
| Magnification | 3x |
| FOV (deg) | 40 |
| Detection distance (m) | 220-240 |
| Diopter (deg) | +5/-5 |
| Lens system | F1.2, 50mm |
| Range of focus (m) | 0.25--∞ |
| Dimensions (mm) | 158X73X54 |
| Weight (g) | 578 |
| Power supply (v) | 2.0-4.2V |
| Battery type (v) | 1 3V CR123A lithium battery |
| Battery life (hrs) |
80(w/o IR) 40(w IR) |
| Operating temperature(℃) | -40/+60 |
| Environmental rating | IP67 |
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Product Customization Services for the Thermal Imaging Monocular:
Brand Name: Hope-Wish
Model Number: HP-DM
Place of Origin: China
Certification: CE, FCC
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Wooden cases, cartons
Delivery Time: 15
Payment Terms: Negotiate
Supply Ability: 300 units per month
Shock Resistance: 1 M Drop
Weight: 3kg
Detection Range: 1,000 M
Lens: F1.2, 50mm
Operating Temperature: –20°C To +50°C
The Thermal Imaging Monocular product comes with comprehensive Product Technical Support and Services to ensure optimal performance and user satisfaction. Our dedicated team of technical experts is available to provide assistance with product setup, operation, troubleshooting, and maintenance. Whether you have questions about using specific features, need help with calibration, or encounter any issues while using the device, our technical support team is here to help.
In addition to technical support, we also offer a range of services to enhance your experience with the Thermal Imaging Monocular product. These services may include product training sessions, software updates, warranty coverage, and repair services. Our goal is to ensure that you get the most out of your Thermal Imaging Monocular and that it continues to meet your needs over time.
Q: What is the brand name of this thermal imaging monocular?
A: The brand name is Hope-Wish.
Q: Where is this thermal imaging monocular manufactured?
A: It is manufactured in China.
Q: What certifications does this thermal imaging monocular have?
A: It is certified with CE and FCC.
Q: What are the packaging details for this thermal imaging monocular?
A: The packaging details include wooden cases and cartons.
Q: What is the minimum order quantity for this thermal imaging monocular?
A: The minimum order quantity is 1.
