Product Details:
|
| Power Supply: | 4 X AA Batteries | Humidity: | 95% (non-condensing) |
|---|---|---|---|
| Operating Temperature: | –20°C To +50°C | Shock Resistance: | 1 M Drop |
| Dimensions: | 190 X 80 X 60 Mm | Product Name: | Thermal Imaging Monocular |
| Frame Rate: | 50 Hz | Weight: | 3kg |
| Highlight: | Night Vision Thermal Imaging Monocular,Night Fishing Thermal Imaging Monocular,Multi-function Thermal Imaging Monocular |
||

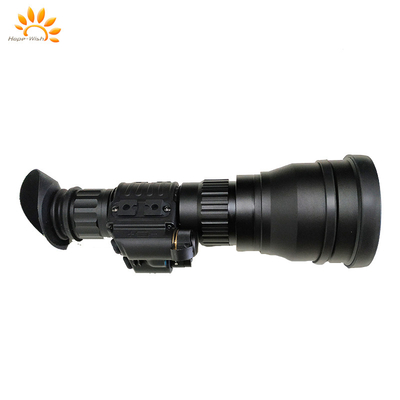

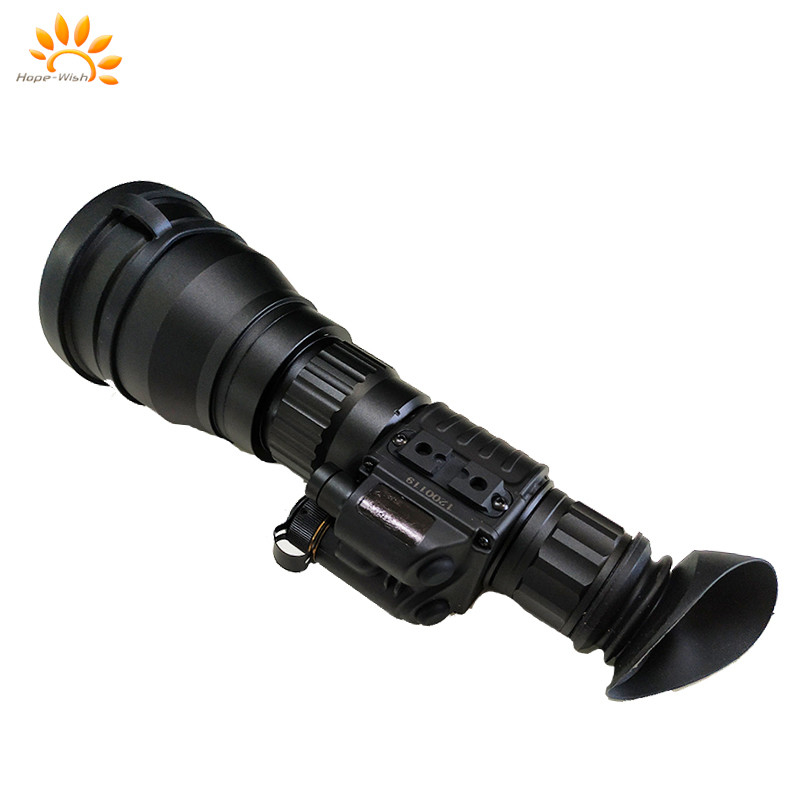

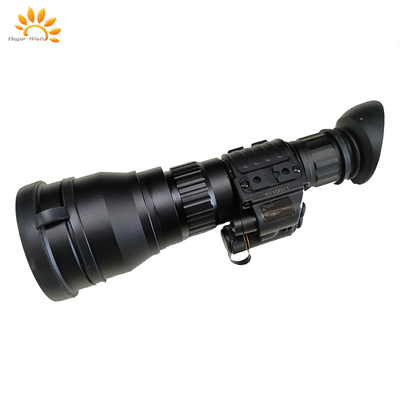

HP-DM2016 is very popular military grade multifunctional night vision products in the market. High magnification - long viewing distance, large objective lens - strong light transmission, can be equipped with 2nd generation + or quasi-3rd generation image intensifier tube according to customer needs. As a multifunctional monocular night vision device, it can be connected to mobile phones, cameras, etc. for night shooting and functional accessories. The diversity of optional accessories greatly expands the scope of use of this night vision device.
The Thermal Imaging Monocular is equipped with a high-quality lens that features an aperture of F1.2 and a focal length of 50mm. This lens configuration ensures sharp and detailed thermal images, making it suitable for applications that require precision and clarity.
Whether you need a thermal security camera for monitoring your property, a monocular for outdoor adventures, or a thermal imaging camera for professional use, the Thermal Imaging Monocular is a versatile and reliable choice. Its durable design, wide temperature range capabilities, and high-quality lens make it a valuable tool for a variety of applications.
1. The night vision device can be equipped with 2nd generation + or quasi-3rd generation image intensifier
2. The perfect combination of ruggedness and fine workmanship
3. Multi-layer coating standard: ultra-broadband multi-layer anti-reflection coating can suppress the broadband reflection of the glass surface of the lens, reduce light loss, and allow more light to pass through the lens to obtain better observation effect
4. A separate infrared enhancer can be selected to enhance the effect of night use and expand the scope of application
5. The battery cover spring is embedded: it can better contact with the battery and the spring is not easy to be damaged, and it is easier to twist the battery cover
| Model | HP-DM2016 |
| IIT | Gen2+ |
| Resolution (lp/mm) | 57-64 |
| Photocathode type | S25 |
| S/N (dB) | 17-21 |
| Luminous sensitivity (μА/lm) | 500-600 |
| MTTF (hrs) | 10,000 |
| Magnification | 6x |
| FOV (deg) | 40 |
| Detection distance (m) | 220-240 |
| Diopter (deg) | +5/-5 |
| Lens system | F1.2, 25.8mm |
| Range of focus (m) | 0.25--∞ |
| Dimensions (mm) | 275X85X83 |
| Weight (g) | 1047 |
| Power supply (v) | 2.0-4.2V |
| Battery type (v) | 1 3V CR123A lithium battery |
| Battery life (hrs) |
80(w/o IR) 40(w IR) |
| Operating temperature(℃) | -40/+60 |
| Environmental rating | IP67 |
This product has strong practicability and can be used for night hunting, night fishing, forest fire prevention, power line inspection, home security, public security night patrol, investigation and evidence collection, frontier anti-smuggling, etc. It is an ideal device for both military and civilian use.
With its compact size, durable construction, and waterproof rating of IP67, the Hope-Wish HP-DM Thermal Imaging Monocular is designed to withstand harsh conditions. Whether used as a standalone device or paired with other night vision goggles, this product offers exceptional performance and reliability.
For more information on pricing, packaging details, delivery time, and payment terms, please contact us. The Hope-Wish HP-DM Thermal Imaging Monocular is manufactured in China and comes with CE and FCC certifications, ensuring quality and compliance with international standards.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Product Customization Services for the Night Vision Scope Thermal Imaging Monocular:
Brand Name: Hope-Wish
Model Number: HP-DM
Place of Origin: China
Certification: CE, FCC
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Wooden cases, cartons
Delivery Time: 15
Payment Terms: Negotiate
Supply Ability: 300 units per month
Shock Resistance: 1 M Drop
Power Supply: 4 X AA Batteries
Dimensions: 190 X 80 X 60 Mm
Weight: 3kg
Humidity: 95% (non-condensing)
Our company provides comprehensive product technical support and services for our Thermal Imaging Monocular. Our team of highly trained technicians is ready to assist you with any technical questions or issues you may encounter.
We offer troubleshooting guidance, product maintenance tips, and software updates to ensure that your Thermal Imaging Monocular is always performing at its best.
In addition, we provide repair services for any defects or damages that may occur during the product's lifecycle. Our goal is to help you maximize the performance and longevity of your Thermal Imaging Monocular.
Q: What is the brand name of this Thermal Imaging Monocular?
A: The brand name is Hope-Wish.
Q: What is the model number of this Thermal Imaging Monocular?
A: The model number is HP-DM.
Q: Where is this Thermal Imaging Monocular manufactured?
A: This product is manufactured in China.
Q: What certifications does this Thermal Imaging Monocular have?
A: It is certified with CE and FCC.
Q: What is the minimum order quantity for this Thermal Imaging Monocular?
A: The minimum order quantity is 1 unit.
